DHS780T2-GB

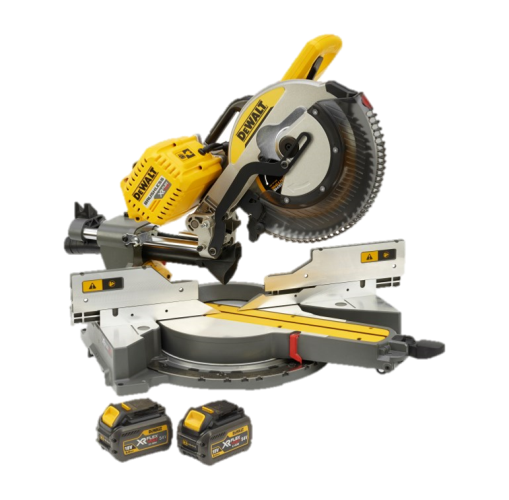

DHS780T2 Flexvolt DeWalt Mitre Saw

DeWalt flexvolt Mitre Saw
  • Description
  • More Details

DHS780T2
2x54V XR FLEXVOLT 305mm Mitre Saw2x6.0Ah

  • 2x 54V cordless or mains power supply for ultimate flexibility
  • Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
  • Heavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool.
  • New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
  • Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
  • Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
  • Long life Accuracy in Table and Fence Design
  • The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
  • Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
  • Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
  • Outstanding dust control and deflection away from cutting area
  • The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

  • Voltage 2x54 V

  • Power Source AC/DC

  • Battery Capacity Ah

  • Blade Speed 3800 rpm

  • Blade Diameter 305 mm

  • Blade Bore 30 mm

  • Bevel Capacity 49/49 °

  • Mitre Capacity [right/left] 60/50 °

  • Cutting Capacity at 90°/45° (W x H) 211 x 112 mm

  • Cutting Capacity at 90°/90° (W x H) 303 x110 mm

  • Cutting Capacity at 90°/90° (W x H) 345 x 76 mm

  • Cutting Capacity at 45°/90° (W x H) 268 x 63 mm

  • Cutting Capacity at 45°/90° (W x H) 345 x 44 mm

  • Cutting Capacity at 90°/45° (W x H) 244 x 76 mm

  • Max. Cutting Capacity at 45°/45° 212 x 76 mm

  • Max. Depth of Cut [Saws] 170 mm

  • Weight 25.5 kg

  • Depth 470 mm

  • Length 770 mm

  • Height 396 mm
