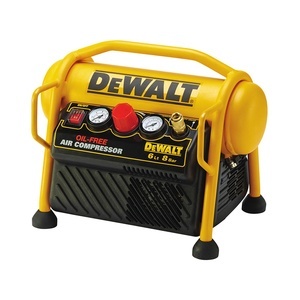

Portable, high power to weight ratio compressor designed for small and medium tools

Tank volume	6 l
Voltage	230 V
Power	1.5 HP
Power	1100 W
Pump Type	Oil-free
Max Pressure	8 Bar
Air Displacement	170 l/min
Air Delivery	75 l/min
Noise LWa 1sd / Uncertainty	97 / 1.5 dB
Noise LPa 1sd / Uncertainty	77 dB
Width	445 mm
Length	360 mm
Height	400 mm
Weight	10.5 kg

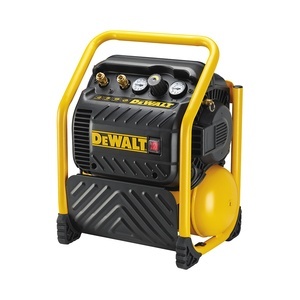

Input Power: 1,100 Watt, 1.5 HP.
Tank Volume: 10 Litre.
Max Operating Pressure: 200 PSI, 13.8 Bar.
Air Displacement: 119 Litres/min.
Air Delivery: 82 Litres/min.
Pump Type: Oil-Free.
Size (WxLxH): 435 x 538 x 335mm.
Weight: 20.4kg.

Noise LWa 1sd / Uncertainty: 89.0/3.0dB.
Noise LPa 1sd / Uncertainty: 71.5/3.0dB.

It has a lightweight, compact design making it easier to carry and store. With dual quick couplers, it can easily support 2 nailers at once. The ball valve drain allows for quick and thorough tank draining with a high-flow regulator for increased performance.

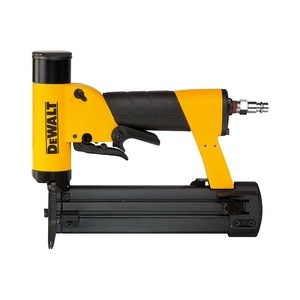

Lightweight compact detail pinner built for use on toughest construction environments

Perfect for fine intricate work without marking work surface thanks to compact nose and power adjustment

Easy loading magazine and rubber grip for additional comfort

Power Source	Pneumatic
Nail Diameter	. gauge
Nail Length	10 - 30 mm
Nail head diameter / Crown	0.6 mm
Magazine capacity	200 Nails
Trigger Type	Sequential
Operating Pressure	4.9 - 7 Bar
Air consumption per actuation	0.52 l
Noise LPa 1sd / Uncertainty	68.1 / 4 dB
Noise LWa 1sd / Uncertainty	81.1 / 4 dB
Noise LPa 1s, 1m / Uncertainty	78.9 / 4 dB
Vibration / Uncertainty	<2.5 m/s²
Length	230 mm
Height	198 mm
Width	41 mm
Weight	0.98 kg

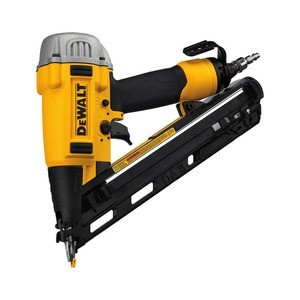

Advanced design Precision Point™ nose with unique contact detect system for reduced marking of work surface

80% nose tip reduction for improved accuracy and visibility

Integrated air blower allows to clear away debris from work surface

Power Source	Pneumatic
Nail Diameter	15 gauge
Nail Length	32 - 64 mm
Nail head diameter / Crown	3.2 mm
Magazine capacity	129 Nails
Trigger Type	Sequential & Bump
Operating Pressure	4.8 - 8.3 Bar
Air consumption per actuation	1.7 l
Noise LPa 1sd / Uncertainty	80.1 / 4 dB
Noise LWa 1sd / Uncertainty	93.12 / 4 dB
Noise LPa 1s, 1m / Uncertainty	87.13 /4 dB
Vibration / Uncertainty	. m/s²
Length	360 mm
Height	296 mm
Width	92 mm
Weight	1.8 kg

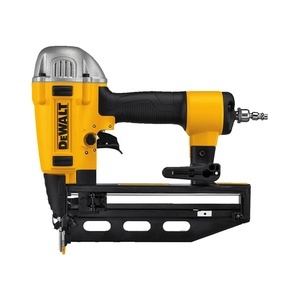

Advanced design Precision Point™ nose with unique contact detect system for reduced marking of work surface

80% nose tip reduction for improved accuracy and visibility

Tool-free jam release mechanism for easy nail removal

Power Source	Pneumatic
Nail Diameter	16 gauge
Nail Length	25 - 64 mm
Nail head diameter / Crown	1.6 x 2.8 mm
Magazine capacity	110 Nails
Trigger Type	Sequential & Bump
Operating Pressure	4.8 - 8.3 Bar
Air consumption per actuation	1.27 l
Noise LPa 1sd / Uncertainty	79 / 4 dB
Noise LWa 1sd / Uncertainty	92.05 / 4 dB
Noise LPa 1s, 1m / Uncertainty	85.2 / 4 dB
Vibration / Uncertainty	3.26 / 1.63 m/s²
Length	302 mm
Height	289 mm
Width	86 mm
Weight	1.7 kg

Advanced design Precision Point™ nose with unique contact detect system for reduced marking of work surface

80% nose tip reduction for improved accuracy and visibility

Tool-free jam release mechanism for easy nail removal

Power Source	Pneumatic
Nail Diameter	18 gauge
Nail Length	15 - 50 mm
Nail head diameter / Crown	2 mm
Magazine capacity	100 Nails
Trigger Type	Sequential & Bump
Operating Pressure	4.8 - 8.3 Bar
Air consumption per actuation	0.8 l
Noise LPa 1sd / Uncertainty	75.3 / 4 dB
Noise LWa 1sd / Uncertainty	88.27 / 4 dB
Noise LPa 1s, 1m / Uncertainty	82 / 4 dB
Vibration / Uncertainty	2.71 / 1.35 m/s²
Length	235 mm
Height	240 mm
Width	70 mm
Weight	1.24 kg
